What the world's tiniest 'monster truck' reveals

The researchers are presenting their nanocar research today at the 254th National Meeting & Exposition of the American Chemical Society (ACS). ACS, the world's largest scientific society, is holding the meeting here through Thursday. It features nearly 9,400 presentations on a wide range of science topics.

“The overarching goal was to advertise nanoscience to the public,” Eric Masson, Ph.D., says. “Then there was the technical challenge of manipulating multiple nanocars at the same time using a scanning tunneling microscope, or STM, instrument. Additionally, every team had its own goal. Ours was to see if we could deposit an intact supramolecular assembly onto a surface, and control its motion.”

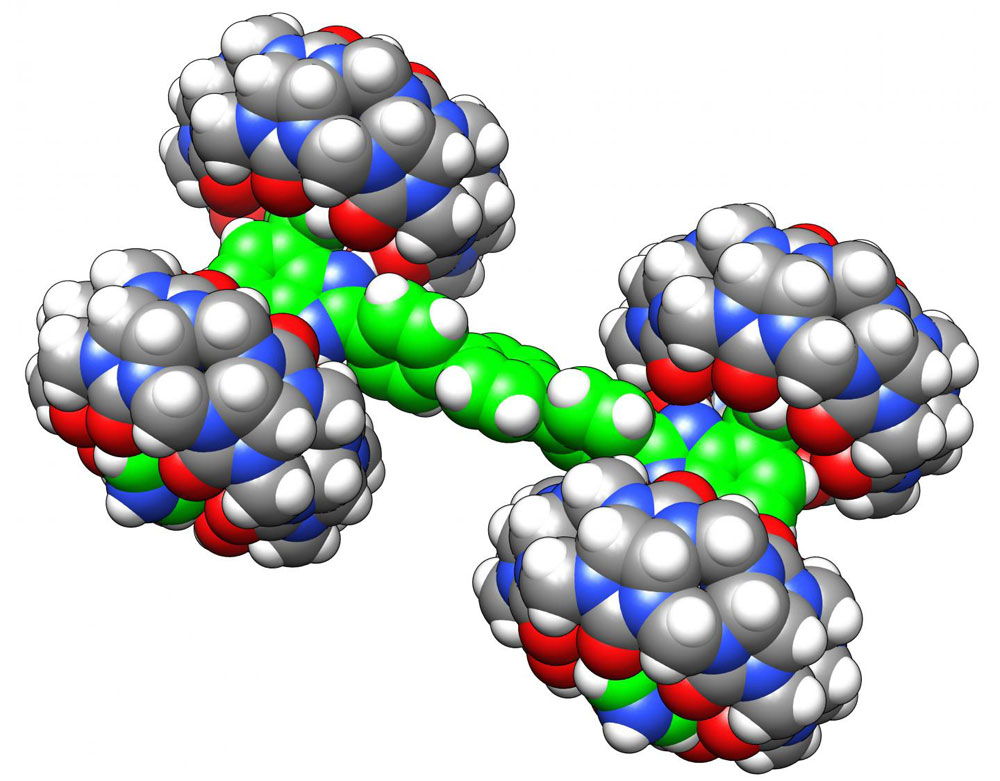

Masson and Saw-Wai Hla, Ph.D., co-led the team from Ohio University. They designed and built the largest car at about 3.5 nanometers in length. Officially called the Bobcat Nanowagon, it had a pseudorotaxane H-shaped frame with four relatively large cucurbituril molecules as wheels. Because of the size, it was ironically dubbed a monster truck. But unlike normal vehicles, it didn't have a motor. So to move the nanocar, the researchers used the STM instrument in Hla's lab.

“We incorporated positive charge receptors in the car,” Hla says. “So if we injected a positive charge in the STM tip pointed at the car, there would be repulsion, and the car would move. We found it worked very well.”

The competition, billed as the first-ever nanocar race, was held at the French National Center for Scientific Research (CNRS) in Toulouse on April 28. Six teams from three continents entered their molecule-sized racers. But because the STM instrument in Toulouse only had four tips that could each control only one nanocar, the Ohio team kept their nanowagon in Hla's lab but “drove” it remotely from CNRS.

“My understanding is that this was a first,” Hla says. “We manipulated the car at the atomic scale from half a globe away.”

Hla and Masson's nanowagon traveled 43 nanometers on the gold track before it got stuck due to a particularly rough section of the track and a power blip in the Midwest. Although it didn't complete the course, it went farther than three other contestants, earning the team a third-place showing.

Masson and Hla say the Ohio team uncovered something intriguing as a result of the race. They had assembled the nanowagon by suspending the chassis molecules in water, adding the wheel molecules and then evaporating the water. About 70 percent of the resulting structures looked like two-wheeled hover boards, a few had three wheels, and about 10 percent had all four wheels. They were surprised to find that very few wheels weren't connected to anything.

“That means that it was easier to break the chassis, a covalent bond, than to break the noncovalent bonds between the chassis and the wheels,” Masson says. “That's completely counterintuitive because typically a noncovalent bond is much weaker than a covalent bond. It's a theoretical curiosity.”

How this information might apply ultimately to molecular machines in the future remains unknown, although many scientists envision that tiny vehicles like these could be used in electronics and data storage. Masson and Hla both stress that the work is still in its early stages. Before applications come along, scientists need to understand how molecules behave at the atomic scale.

“Our excitement is really about the fundamental science,” Hla says. “This is just the beginning.”

###

A press conference on this topic will be held Wednesday, Aug. 23, at 11 a.m. Eastern time in the Walter E. Washington Convention Center. Reporters may check-in at the press center, Room 154A, or watch live on YouTube http://bit.ly/ACSLive_DC. To ask questions online, sign in with a Google account.

The researchers acknowledge funding from the National Science Foundation, Ohio University, and the U.S. Department of Energy, Basic Energy Sciences grant DE-FG02-02ER46012.

The American Chemical Society, the world's largest scientific society, is a not-for-profit organization chartered by the U.S. Congress. ACS is a global leader in providing access to chemistry-related information and research through its multiple databases, peer-reviewed journals and scientific conferences. ACS does not conduct research, but publishes and publicizes peer-reviewed scientific studies. Its main offices are in Washington, D.C., and Columbus, Ohio.

To automatically receive press releases from the American Chemical Society, contact newsroom@acs.org.

Note to journalists: Please report that this research was presented at a meeting of the American Chemical Society.

Follow us: Twitter | Facebook

Title
Frame suspended into four Cucurbituril wheels: Meet the Ohio Bobcat Nanowagon

Abstract
We present the design, synthesis and characterization of the Ohio Bobcat Nanowagon, a [5]pseudorotaxane assembly bearing an H-shaped frame threaded into four Cucurbit[7]uril (CB[7]) wheels. The key motifs in the frame are two benzimidazolium groups, which link a terphenyl drive shaft (the horizontal bar of the “H” frame) to the axle shafts (the vertical bars of the “H” frame). Four pyridinium units terminate the latter. Positive charges at the pyridinium and benzimidazolium units allow the frame and the CB[7] wheels to assemble into the final nanowagon in water. The white solid obtained upon freeze-drying was used for successful scanning tunneling microscopy imaging (STM).
